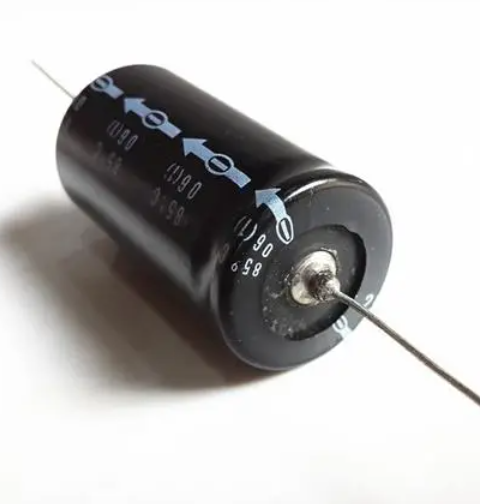

Capacitors, though seemingly simple, are remarkably versatile and integral to circuit design. At their core, capacitors are devices designed for storing and releasing electrical charge. They consist of two electrode plates with an insulating medium nestled between them. Their fundamental operation hinges on the processes of charging and discharging, enabling them to perform a myriad of crucial tasks within a circuit.
In power supply circuits, capacitors fulfill several roles: bypass, decoupling, filtering, and energy storage. The bypass function involves providing energy to local devices, smoothing the output of voltage regulators, and mitigating load pressure. These capacitors can charge and discharge swiftly, curtailing impedance and averting issues like ground potential rise and noise disturbances due to excessive input values.
Decoupling capacitors come into play to lessen the influence of drive circuit current fluctuations on the power supply and to prevent interference between multi-level amplifiers. Acting like "batteries" in the circuit, they ensure the independence and stability of sequential circuits. For filtering, capacitors transform rectified pulsating DC voltage into a more stable form through their charge and discharge characteristics, adeptly filtering out high-frequency and pulsed interference signals, thus enhancing circuit performance.
The energy storage function is pivotal, especially in high-power power supplies. Here, capacitors collect charges and disperse stored energy to the power output, configurable in various ways to cater to specific power needs.
In signal circuits, capacitors primarily engage in coupling and oscillation/synchronization tasks. For coupling applications, capacitors minimize the coupling effect of signals in amplifiers and similar circuits. They reduce interference caused by feedback, ensuring signal clarity and accuracy. In oscillation and synchronization, capacitors are key components in RC and LC oscillators, vital for maintaining oscillator stability and ensuring correct signal synchronization. This multi-faceted functionality underscores capacitors' essential role in the realm of electronic circuit design, highlighting their significance in achieving optimal performance and precision.
